Before storing the robot for an extended period of time, for example over the winter, we recommend that you observe the following guidelines, in order to make sure that your robot is in good shape for the next season.
Clean the robot
Before putting the robot into storage, it is important to clean it thoroughly. Follow the usual procedure for cleaning, but be extra thorough, and make sure all paint residue is removed from the spray system. The more paint residue you are able to remove the better.
Empty system of paint
- Unscrew the lid of the paint container and remove the hoses.
- Take the blue return hose and place it back into the container. Press the yellow button.
- When paint is no longer flowing back into the container, press the yellow button again.
Rinse system with water
- Place the transparent suction hose in warm water and the blue return hose in a residual container.
- Press the yellow button to rinse the system.
Rinse nozzle
- When clean water is coming out of the blue return hose, press and hold the blue button. This will activate and rinse the nozzle.
- When clean water is coming out of the return hose and nozzle, press the yellow button.
Clean nozzle parts and filters
- Dismount nozzle parts and filters.
- Clean the parts with a soft brush and warm water.
- Store the nozzle and filter in a bottle of water. This way, you extend the lifespan of both nozzle and filter.

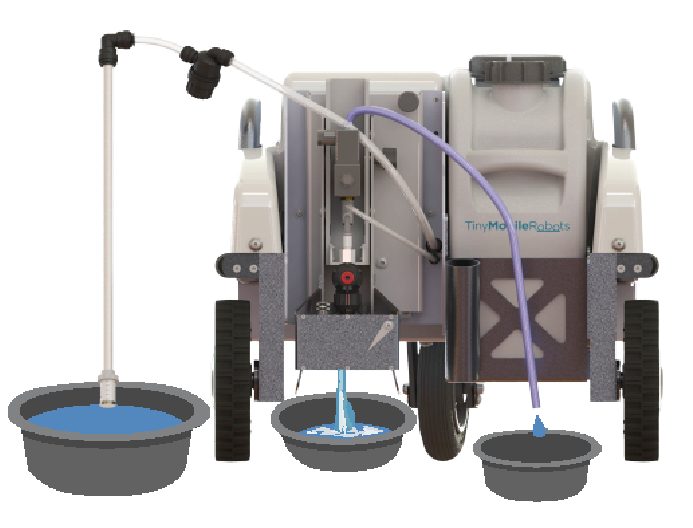

Image: Cleaning of TinyLineMarker Sport: Clean water flowing through hoses and nozzle
Image: Cleaning of TinyLineMarker Pro X: Clean water flowing through hoses and nozzle
Clean the paint container
- Empty the paint container of any leftover paint.
- Rinse the paint container several times in warm water.
- Fill 1/3 of the the paint container with a solution of acetic acid (or household vinegar), let it sit for 10 minutes. Shake the container and wait for additional 5 minutes.
- Empty the paint container and rinse it thoroughly with water.
For detailed instructions, see the full article on cleaning the paint container here.
Battery care
Remove the robot battery from the robot, and store the robot battery and the tablet at room temperature (20-27°/ 68-80°F).
In order to increase the lifespan of the battery, make sure to charge it fully once every month. Do not keep it plugged in.
See the battery guide for more information on battery safety measures.
Robot storage
While in storage, the robot should not be subject to rain, frost or large changes in humidity. Don't put stuff on top of the robot. The robot should be stored at room temperature (20-27°/ 68-80°F), and we advise you to keep to keep the room were the robot is stored under lock.
