It is important to adjust the spray can tool correctly, in order to achieve the best possible results.
- The spray can tool is used when marking points or lines.
- The spray can tool is mounted using four bolts.
- The power cable must be plugged into the rear of the electronic box.

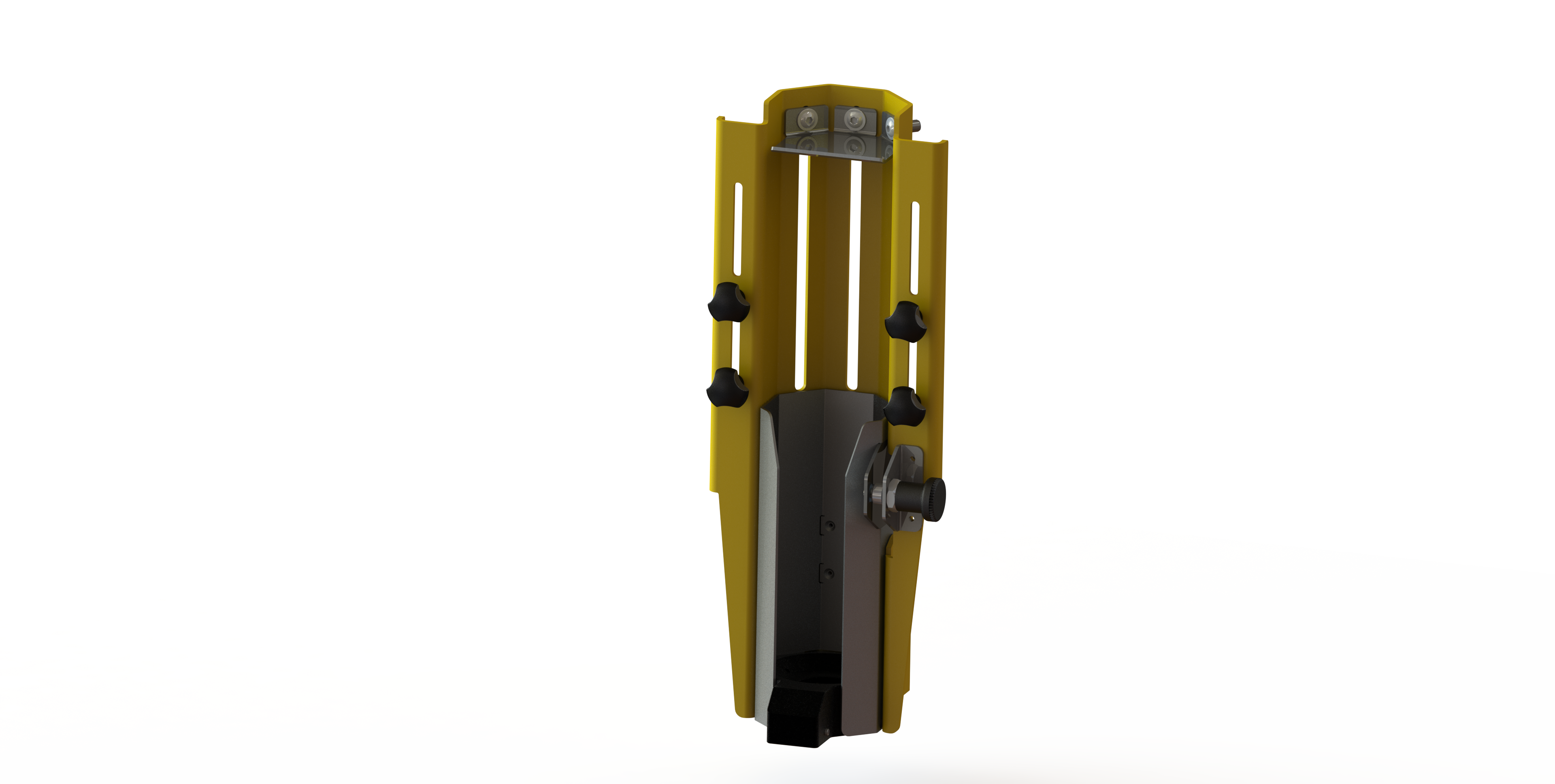

Image: The spray can tool
Adjusting the spray tool
- Ensure that the top plate of the spray can tool is in contact with the bottom of the spray can, when
the can is mounted. - The top plate can be adjusted by loosening three bolts.
- The four bolts allow adjustment of the distance from the spray nozzle to the ground, which in turn
adjusts the width of the spray marking on the ground. These bolts must be tightened properly so that the mechanism sprays in a vertical downwards direction. This ensures the best spray result.

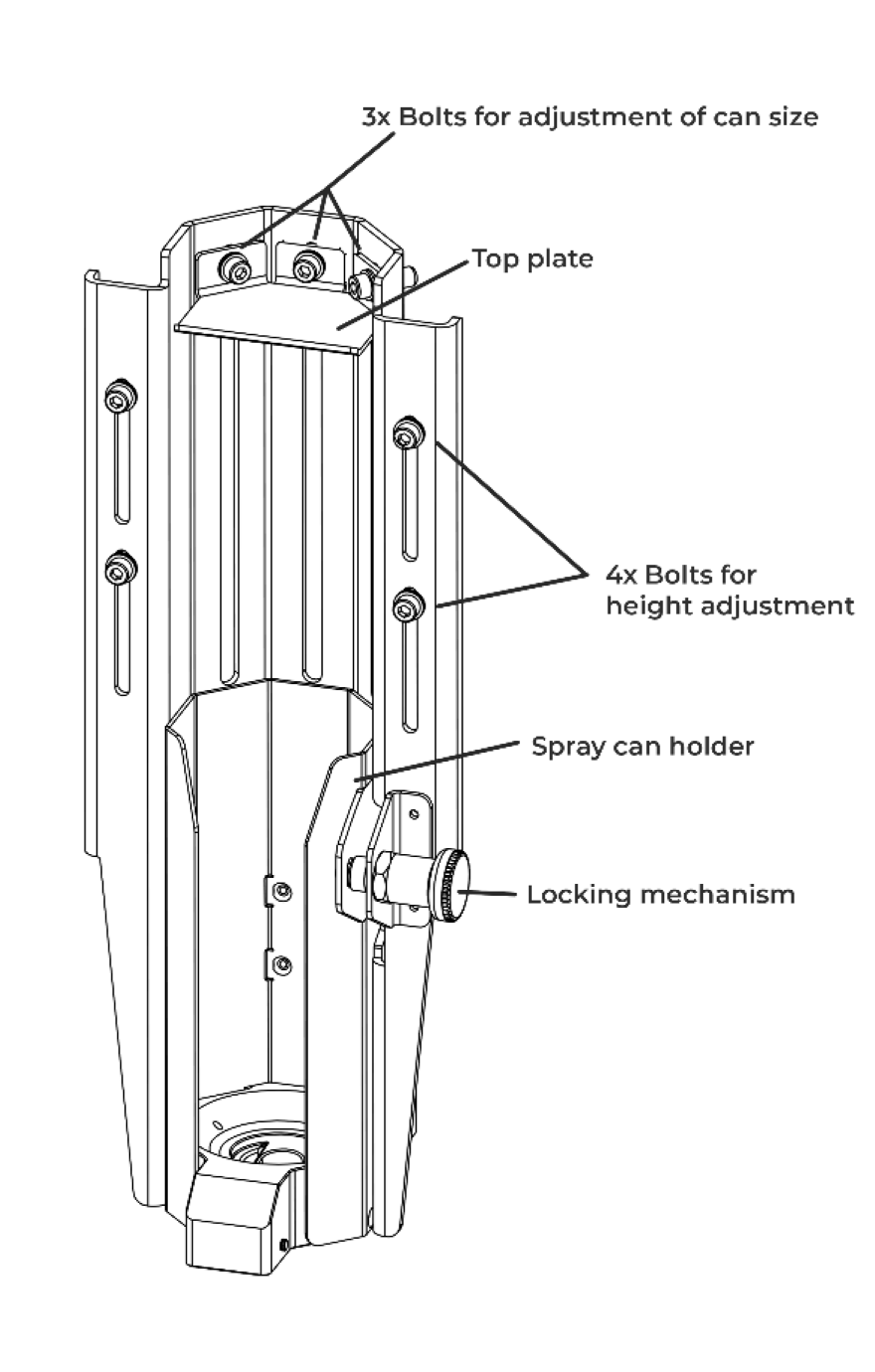

Image: Diagram of the spray can tool
