Copying an existing job
-

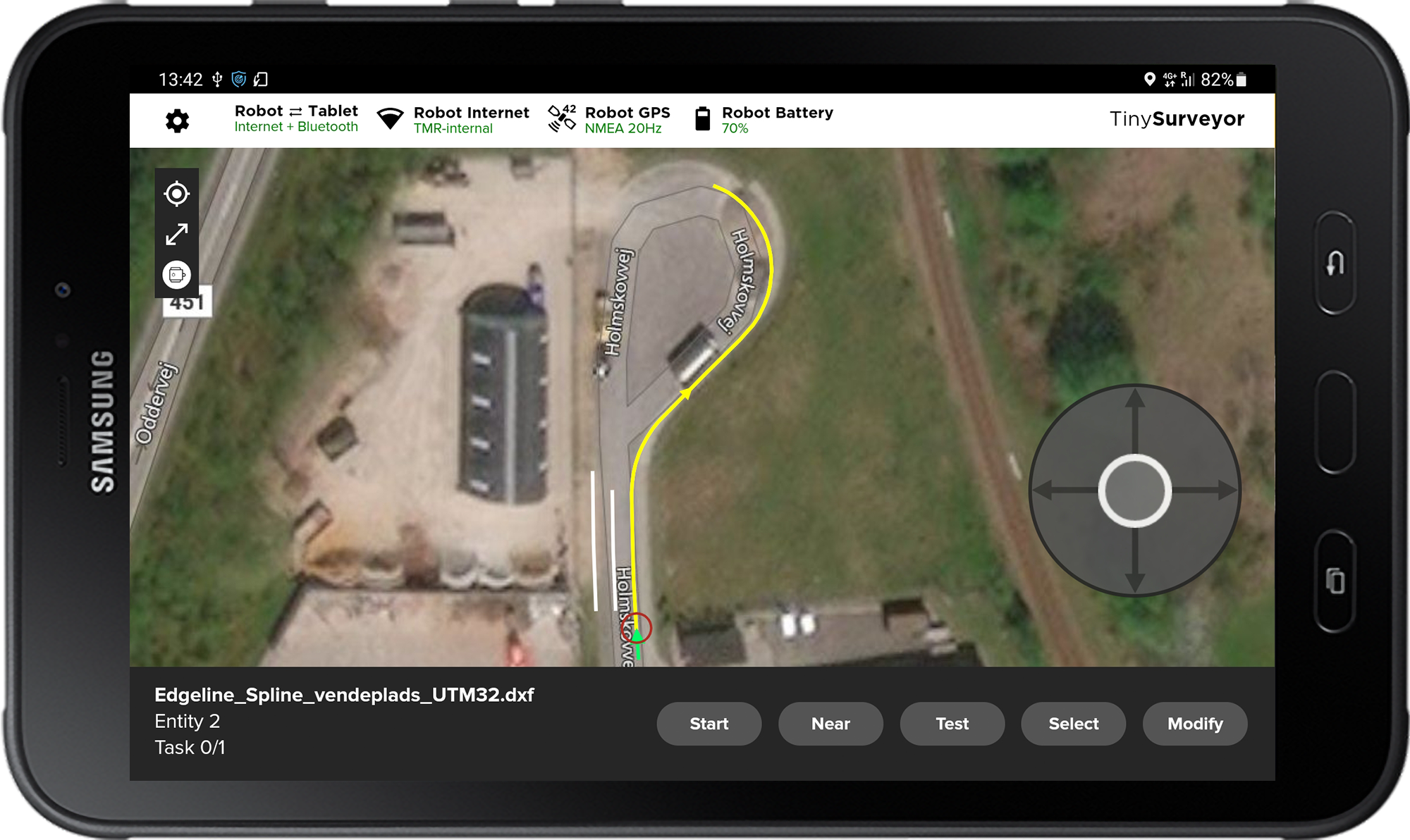

Select the job you'd like to copy. You can select a job by pressing anywhere inside the job. When the job is selected, other features will appear at the bottom of the screen.
-

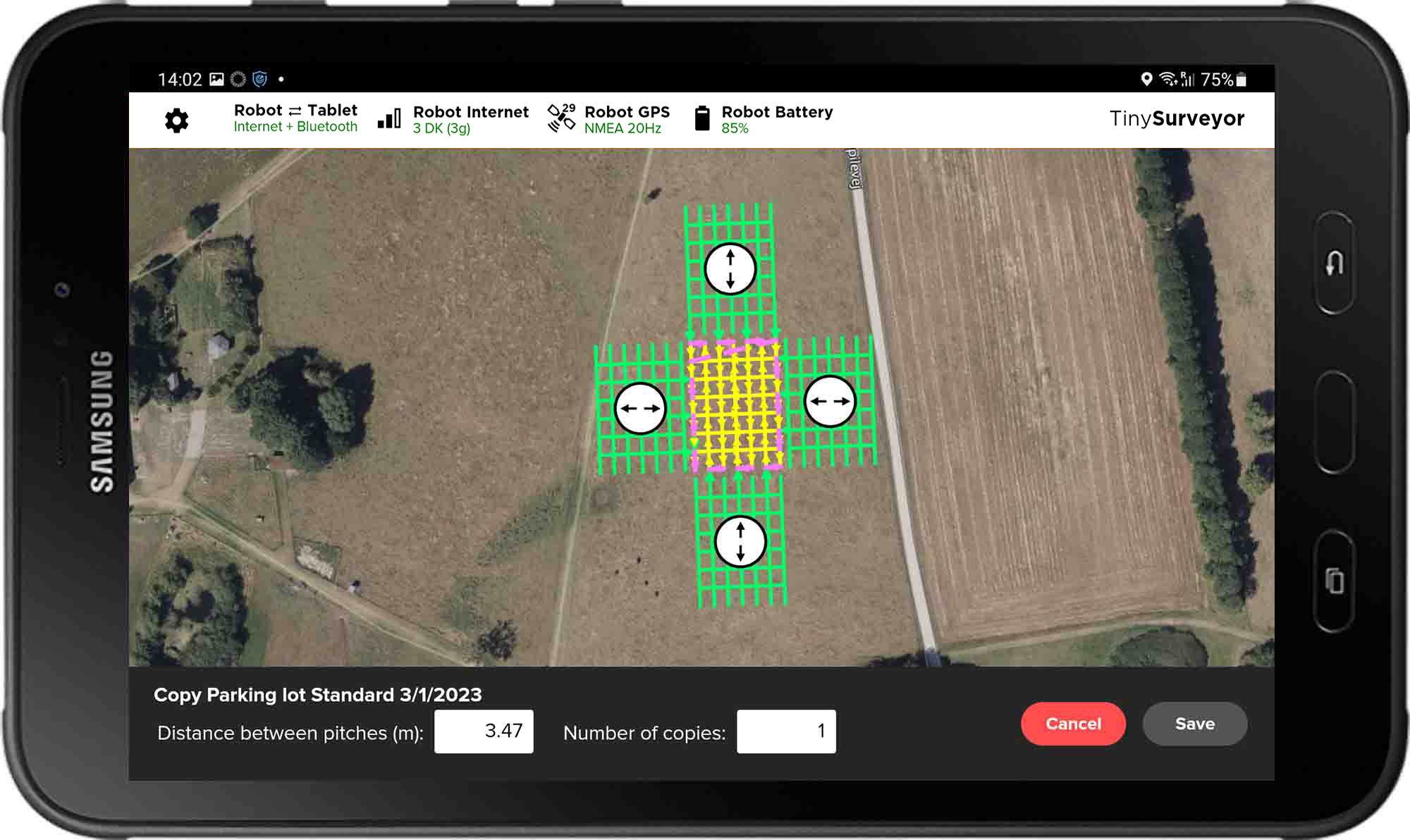

First press Modify, then press Copy. Four placeholder jobs will appear next to the existing one to make your copying process easier.
- Press on the job closest to the final position. Only one copy will now be visible. The new job will keep its alignment and size during copy mode.

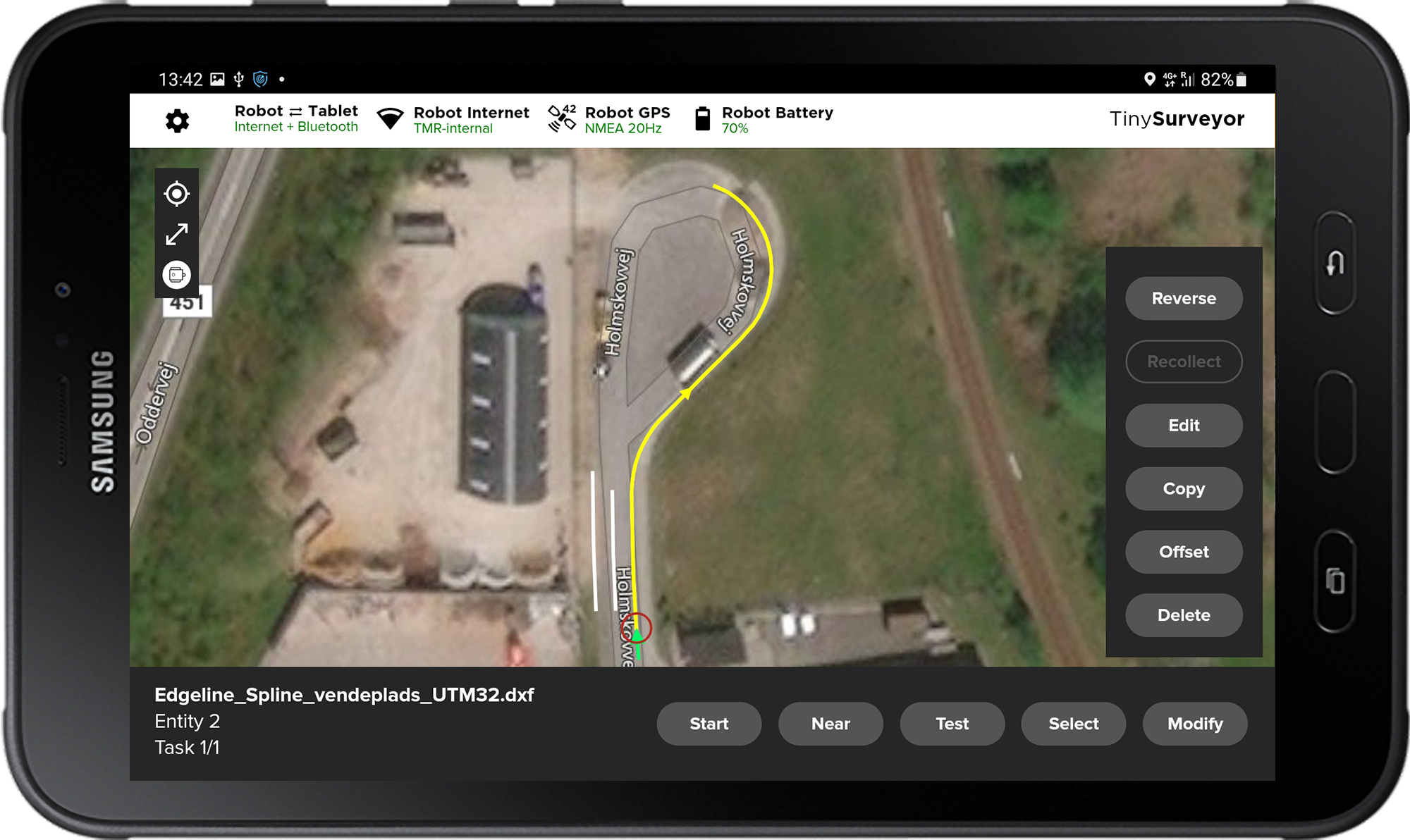

Image: Tablet screenshot showing the option to Copy a job
Moving and resizing a job
- By pressing one of the side-line handles, you can change the width of the selected job.
- By pressing one of the end-line handles, you can change the length of the selected job.
- Press the rotating icon to rotate the job.
- Press the icon with four arrows in order to move the job.

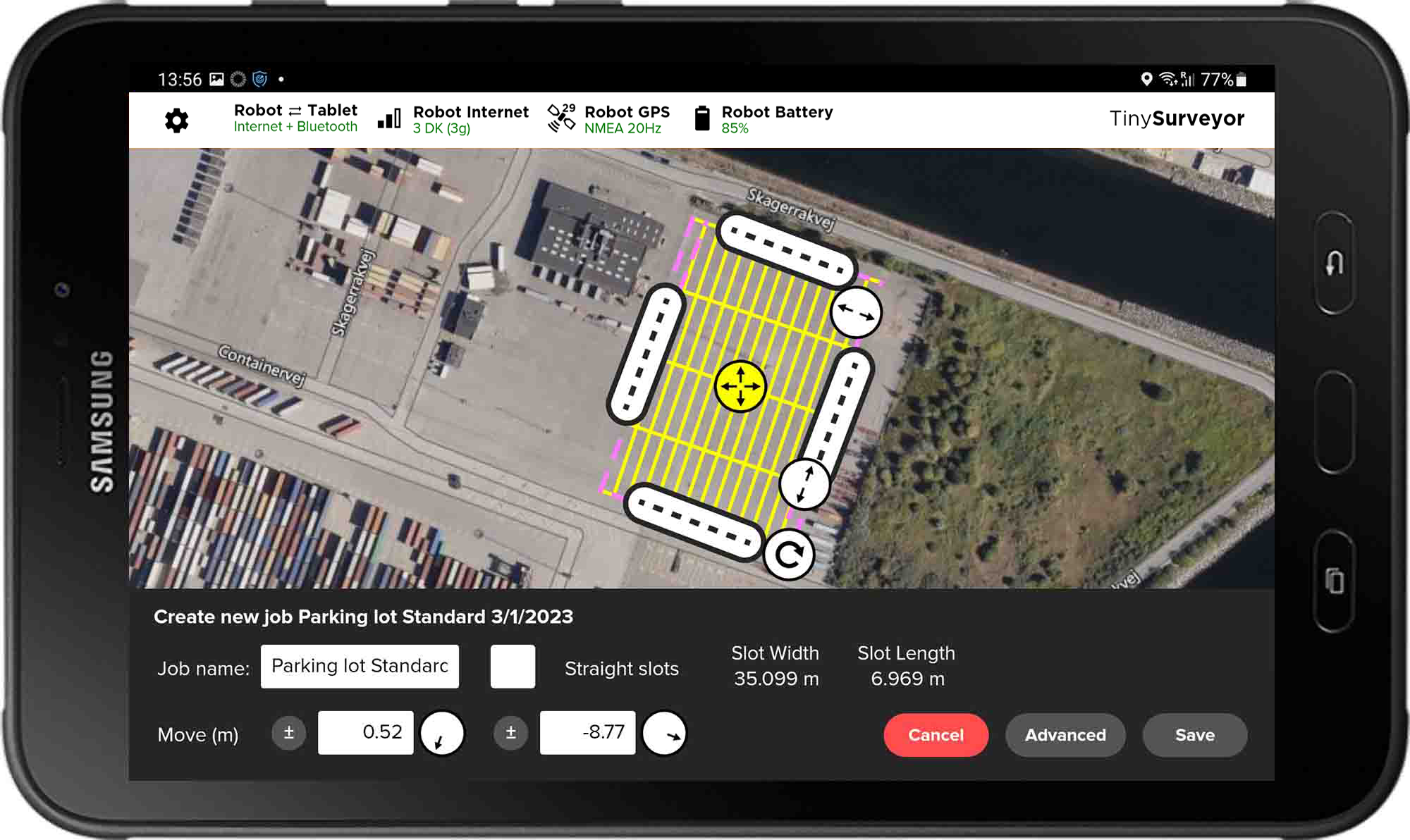

Image: Tablet screenshot showing the options to move and resize a job
Offsetting a job
1. Select the job you would like to Offset and press Modify.
2. Press Offset.

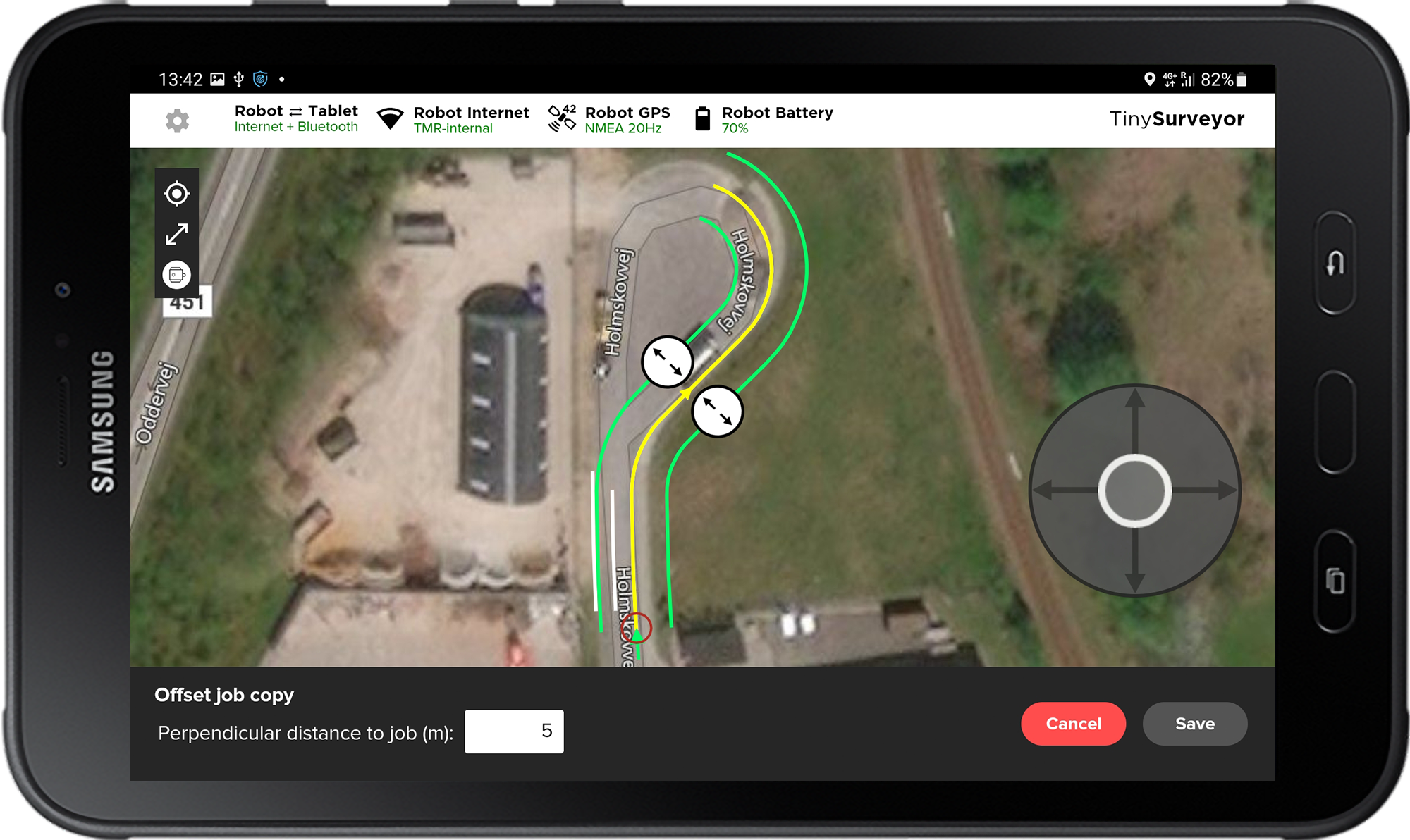

3. You will now see the Offset job copies you can choose from. You can also choose your own Perpendicular distance to job (m), in the bottom left corner of the screen. Once you have chosen the copy you want and are happy with the distance, press Save.
4. You will now see the offset job you selected on the map. Press Save if you are happy with the result.
