Modifying an Existing Job Using Advanced Editing

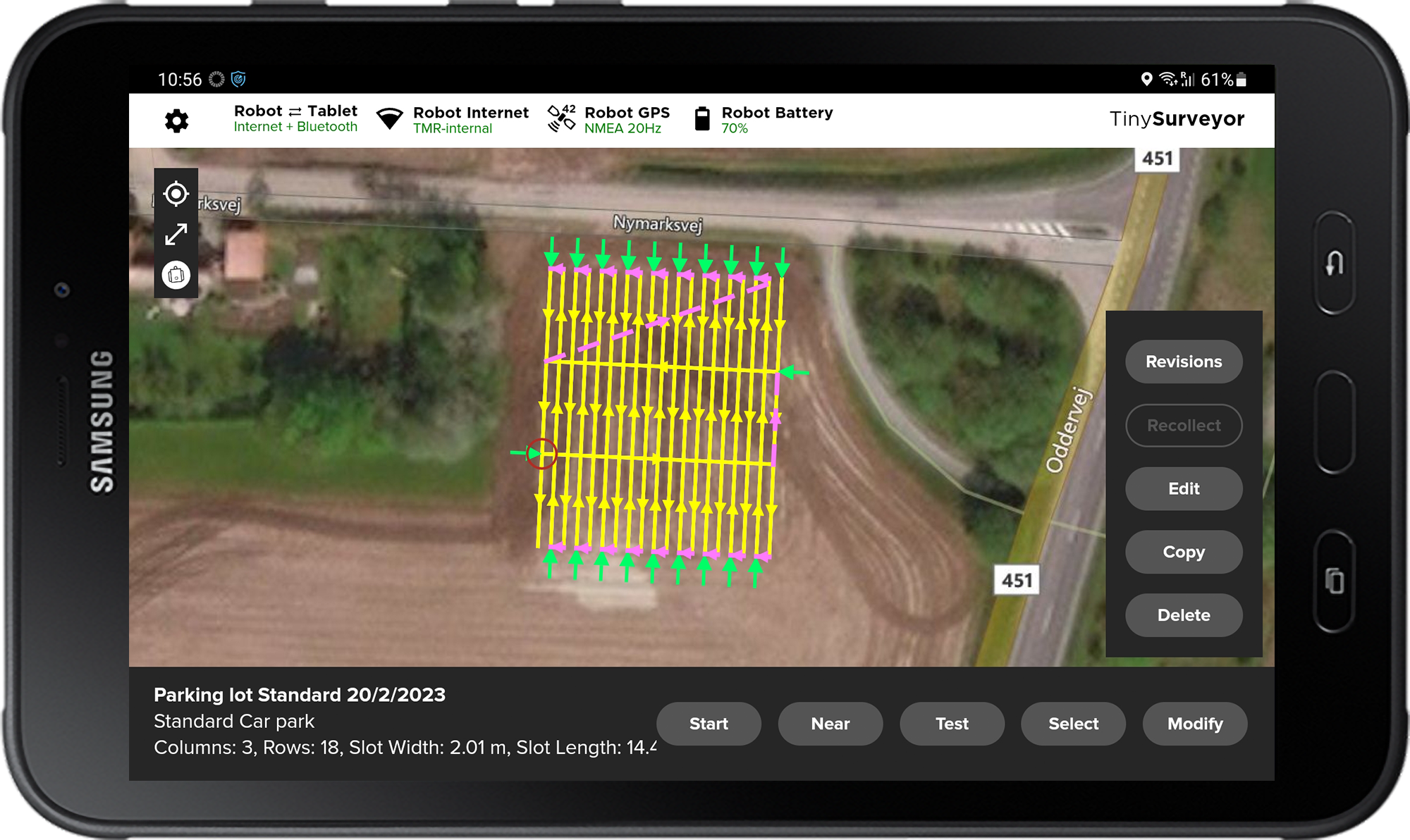

- Select the job you'd like to change.
- Press Modify.
- The Edit option will appear as one of the options. Press it.

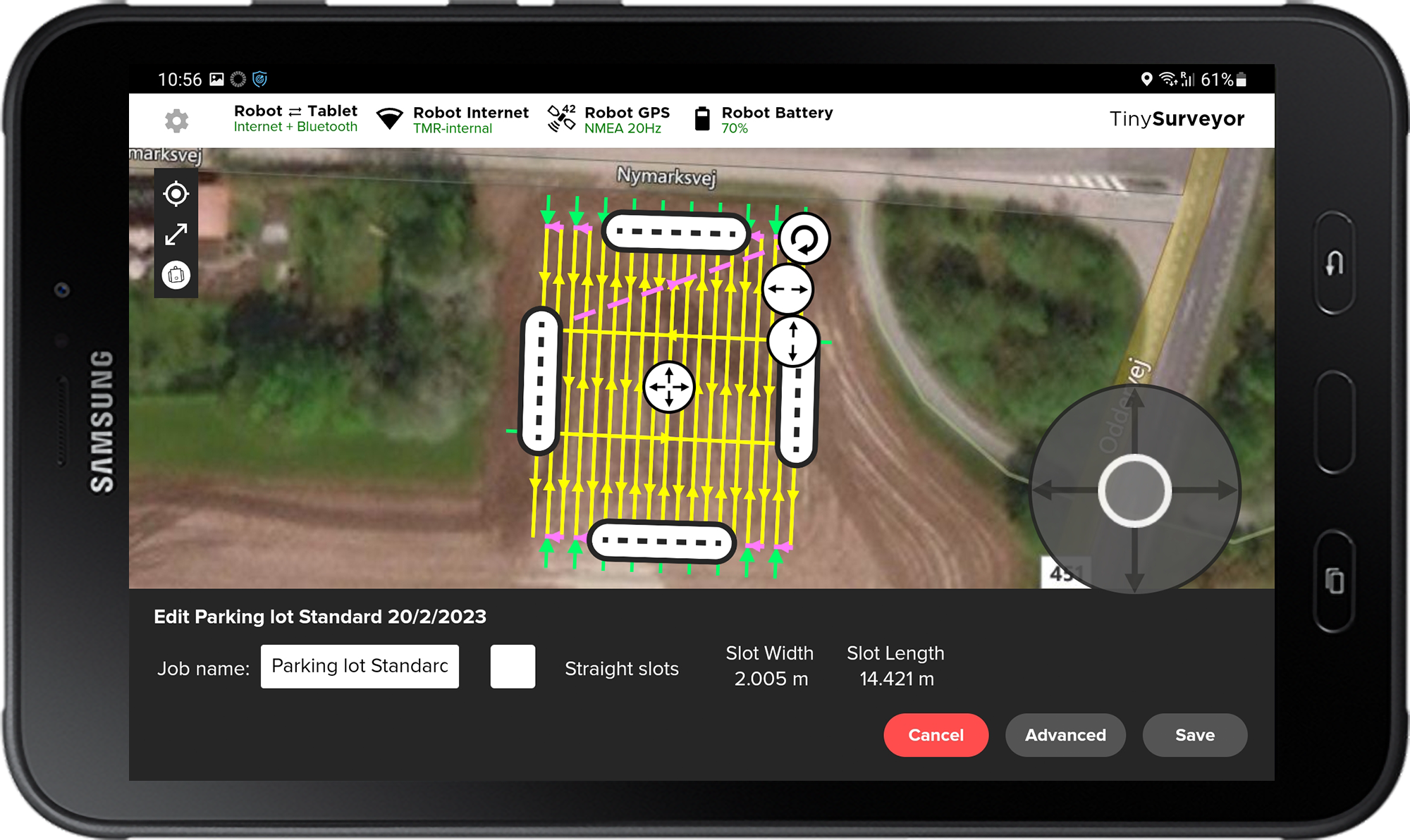

- Handles will now appear on the selected job, allowing you to adjust it.

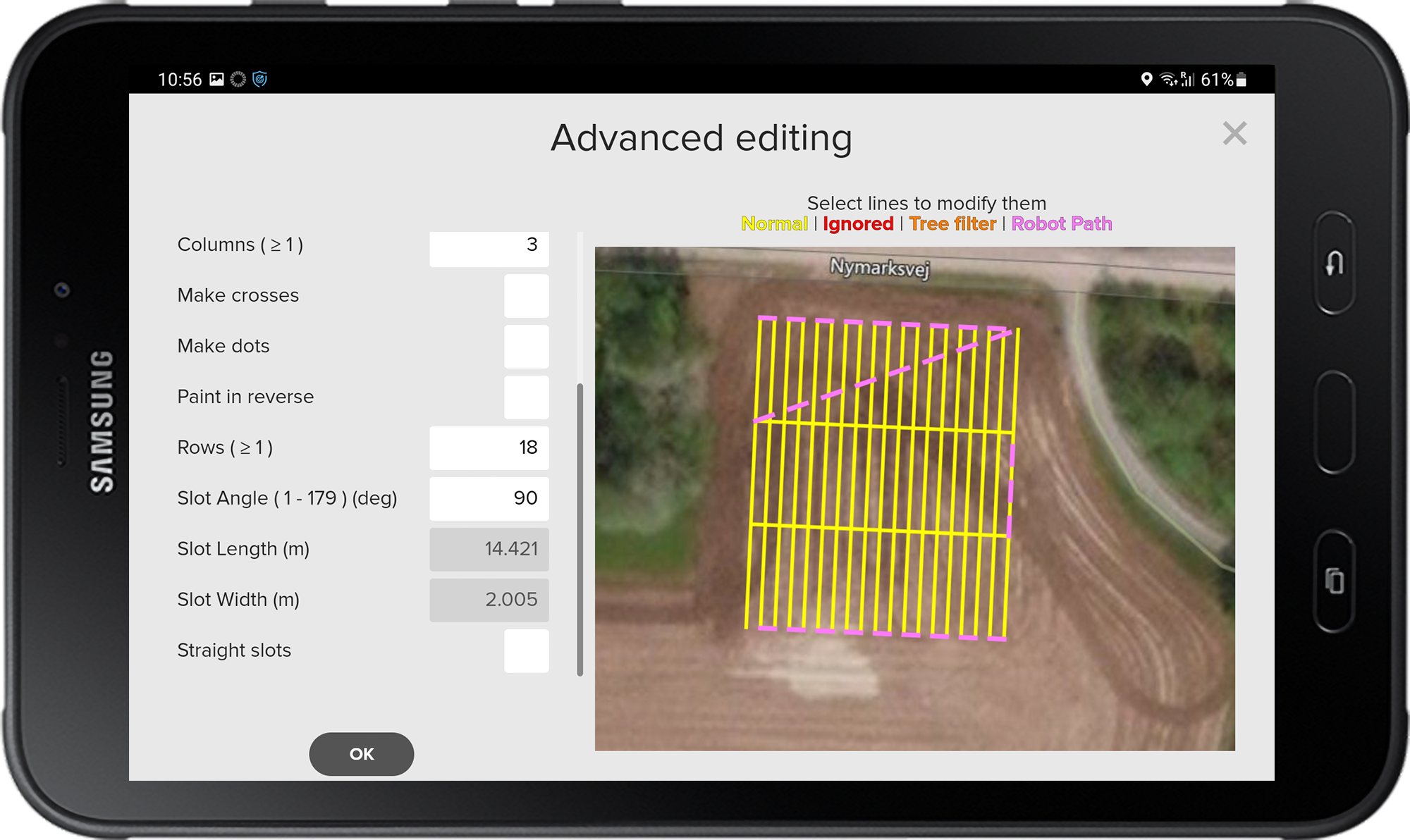

- To enter the Advanced editing options, press Advanced.
6. On the right side of the page, you can see a close-up of your job. You can now choose to modify specific lines on your job by pressing on them until the appropriate color is shown.
7. On top of the job, you can see the 4 different options to choose from: Normal, Ignored,
Tree filter, Robot path.
- Normal: Leaves the lines as they were.
- Ignored: The robot will not paint nor drive the selected line.
- Tree filter: Click here to learn more about the Tree Filter.
- Robot path: This color shows the path that the robot will drive when it is not painting.

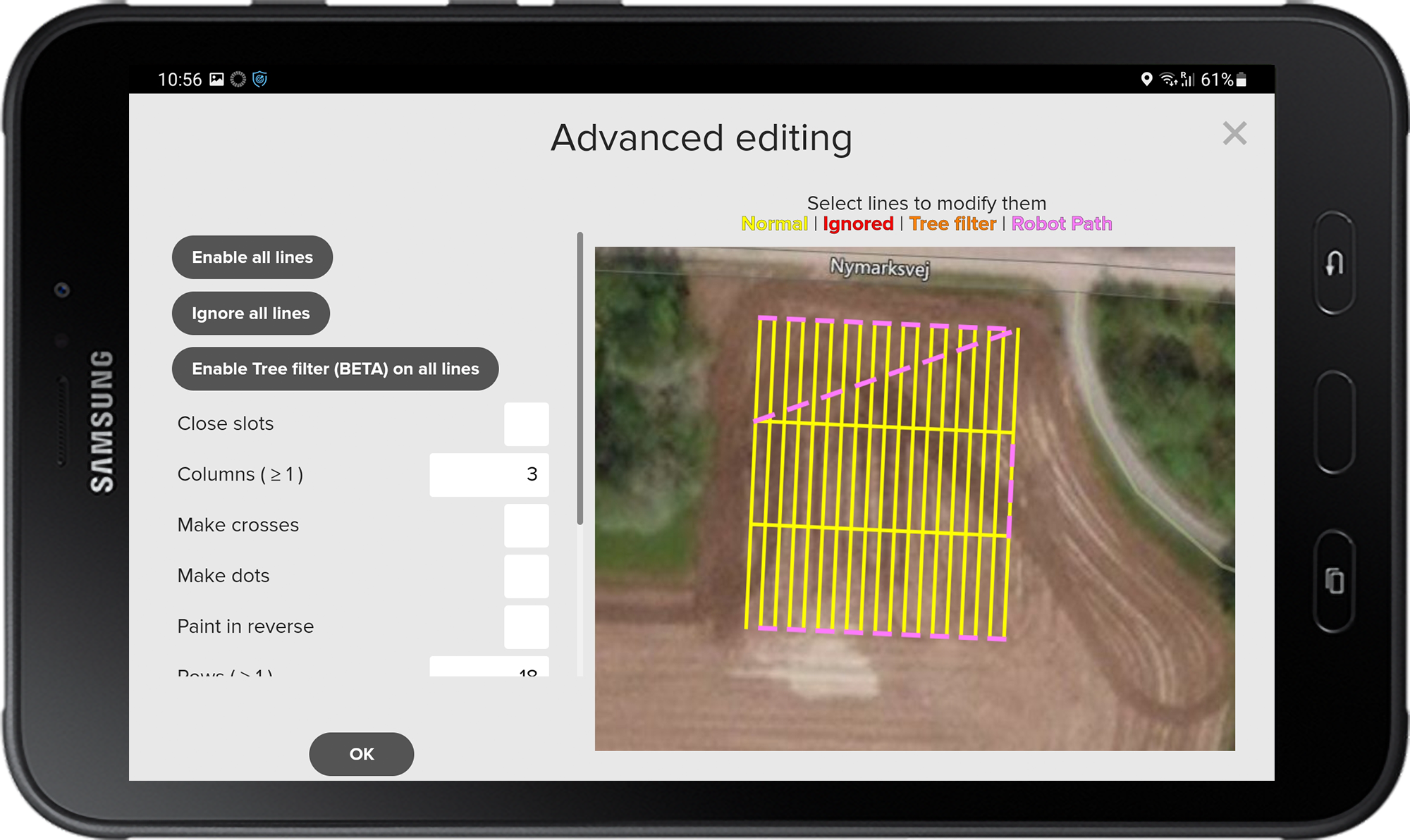

8. On the left side of the screen, you can see the options to: Enable all lines, Ignore all lines, Enable tree filter on all lines.
9. If you scroll down, you can also see the many different options you can add to your job.
